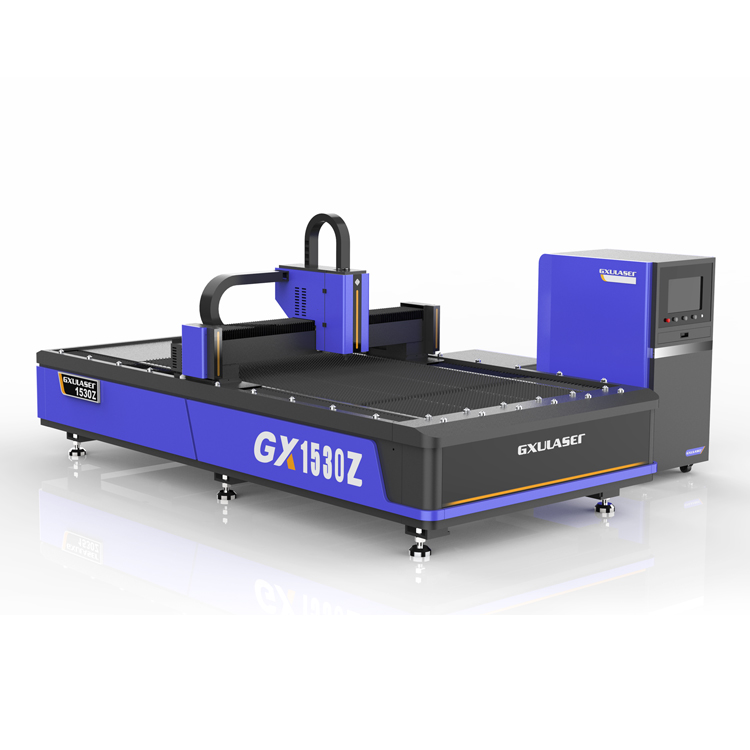

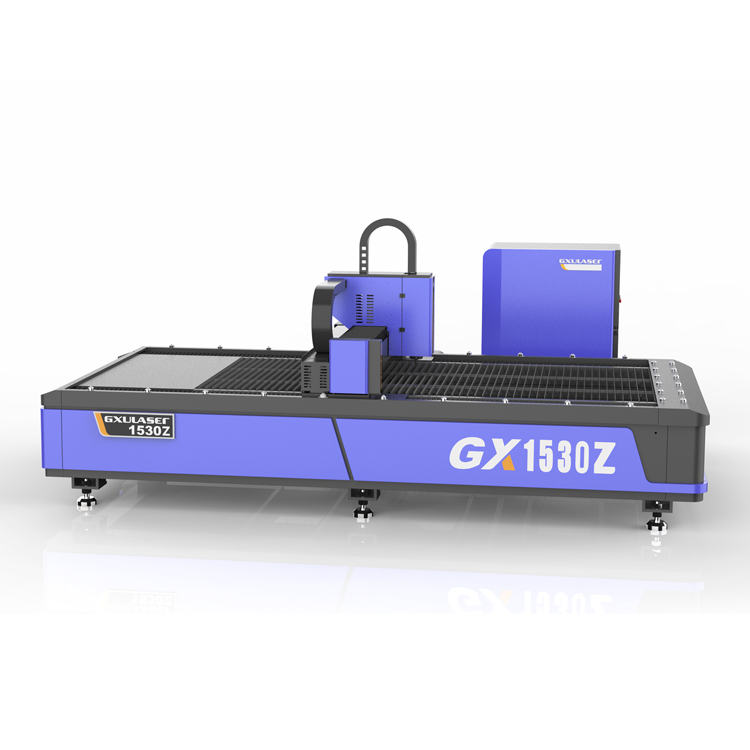

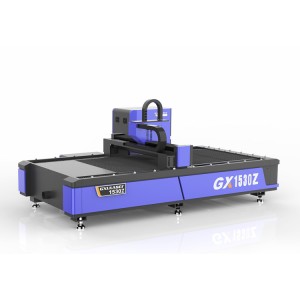

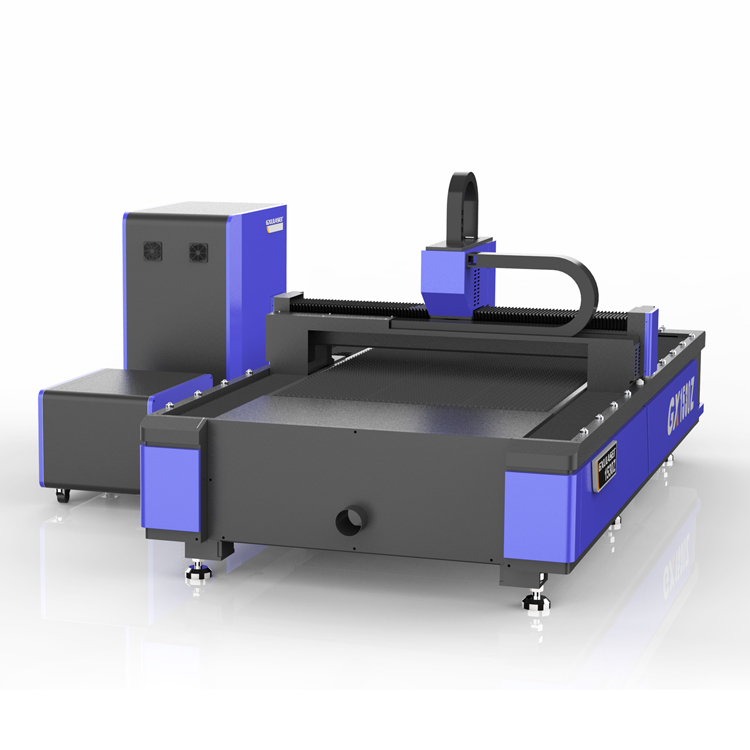

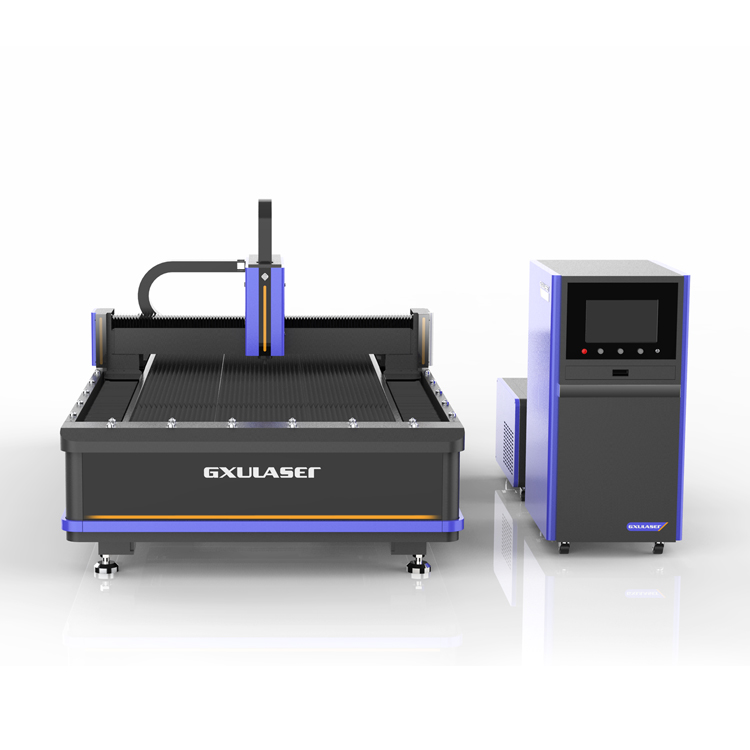

GX-1530Z 1500W 3000W Metal Cutting Fiber Laser Cutting Machine

Short Description:

in sheet metal processing, kitchenware and bathroom, advertising signs, lighting hardware, electrical cabinets, auto parts, mechanical equipment, electrical equipment, aerospace, shipbuilding, elevator manufacturing, rail transit, textile machinery, precision parts, and other metals processing industry.

Product Detail

Product Tags


Cutting Area:1500*3000mm
Graphic Format Supported:AI, BMP, DXF, PLT
Place of Origin:Zhejiang, China
Laser Source Brand:BWT/RAYCUT/IPG
Control System Brand:Cypcut
Optical Lens Brand:Wavelength
Applicable Industries:Printing Shops, Construction works , Advertising Compa
Video outgoing-inspection:Provided
Core Components:Motor
Configuration:gantry type
Position:Red-light position determination
Cutting auxiliary gas:compressed air,nitrogen,oxygen
Min.line Width:0.1mm
machine power:1000-6000W
After-sales Service:Online or go on-site

Applicable Material:Metal
Laser Type:Fiber Laser
Cutting Speed:120m/min
Cutting Thickness:6-25mm
CNC or Not:Yes
Control Software:Cypcut
Laser Head Brand:RAYTOOLS/WSX
Weight (KG):4000 KG
Key Selling Points:Easy to Operate
Warranty:3 years
Machinery Test Report:Provided
Warranty of core components:3 years
Mode of Operation:continuous wave
Products handled:Sheet Metal
Product name:fiber laser cutting machine
Cutting range:1500*3000mm
The laser wavelength:1070nm
Working voltage:380V/50Hz/60Hz/60

Supply Ability

Supply Ability20 Set/Sets per Month

Packaging & delivery

Packaging Details:

Wooden case is customized , PP pack standard


Ningbo,Shanghai or customized as your requirement

Picture Example:


Lead time:

Quantity(sets) 1 - 1 >1
Lead time (days) 7 To be negotiated

Machine datails

Laser Power
Cutting thickness
The laser wavelength
Aimed and positioning
Red light
Min. Line Width
Power supply
Repeat position accuracy
Cooling mode
Water cooled
Cutting range

Fiber Laser Cutting Machine

Machine features

1. 18mm thick sheet welded body, rough machining after high temperature annealing, and finishing after secondary vibration aging treatment; cast aluminum beam.
2. The use of heavy-duty steel die pressure casting ensures the strength, precision and service life of the machine tool;
3. Adopt imported planetary helical gear reducer, high-precision rack and pinion and linear guide rail to ensure stable operation at high speed, low noise and reliable performance.
4. Using servo drive control, stronger torque, faster and more stable operation;
5. Follow-up smoking system, good smoking effect and energy saving;
6. Using laser cutting head and laser lens, the focusing spot is smaller, the cutting line is finer, the work efficiency is higher, and the processing quality is better; the L light of the whole machine is transmitted by optical fiber, no complicated light guide system such as a mirror is needed, and the light path is simple , the structure is stable, and the external optical path is maintenance-free;
7. Adopt fiber laser with high electro-optical conversion efficiency, which can greatly save power consumption during work and save operating costs; the cutting edge is less affected by heat, the cutting seam is flat, and generally does not require secondary processing. Professional laser cutting CNC control system, with intelligent typesetting function, easier operation and higher efficiency.

Application industry

in sheet metal processing, kitchenware and bathroom, advertising signs, lighting hardware, electrical cabinets, auto parts, mechanical equipment, electrical equipment, aerospace, shipbuilding, elevator manufacturing, rail transit, textile machinery, precision parts, and other metals processing industry.

Application materials

carbon steel, stainless steel, copper, aluminum, galvanized sheet, copper, brass, manganese steel, aluminum alloy, titanium alloy, manganese alloy, electrolytic plate and other metal materials.


1.100% quality testing, that is, each machine has been tested strictly in mechanical assembling and performing before delivery;

2.100% sample testing, that is, each machine has been tested by the processed sample before delivery;




We are certified by many parties, has multiple patent certificates.professionalism is guaranteed, the quality is worthy of your choice.

Products Recommended


Related Products


Please feel free to send us an inquiry or message to know more about the machine.

We specialize in CNC routers and laser machines for 16 years.You haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.

Company Profile


Welcome to Visit Our Factory

Welcome to Visit Our Factory If you have plan to visit our factory, just contact us is ok, we willarrange everything well according to your schedule. no matter what trantport way that you want to choose, We will have pick you up, if you need us to arrange your hotel, please contact us.
>>> Click here, Your 24x7 helper ^ ^

Our Services


Support Door to Door

1. 24/7 online service .
2. 2 years warranty for machine.
3. After sale office in differ country
4. Life time maintenance
5. Free online technical support and install train.
6. We have a professional and experienced after-sales team.
7. We support door-to-door after-sales service.
8. In order to effectivelysolve customer problems and help customers use the machine better, we will conduct skill assessments on our after-sales team every year.




Q: How about after-sales service?
A: 1. We can provide free training in our company. 2. If u need, our engineers are available to service machinery overseas. But u need pay the tickets and hotel fees for our engineers.

Q: How about the warranty?

A: 2-year warranty for engraving machine,3-year warranty for laser machine.Life time maintenance.

Q: What should I do when I have some problems or questions?
A: Pls don’t hesitate to contact us, we will reply u ASAP.

Q: How about the quality?
A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for his mistake. And we will solve your problem.

Q: Which is the most suitable model machine for me?
A: Pls tell us your materials, thickness, size and business industries.We will select the machine model that is right for you.
