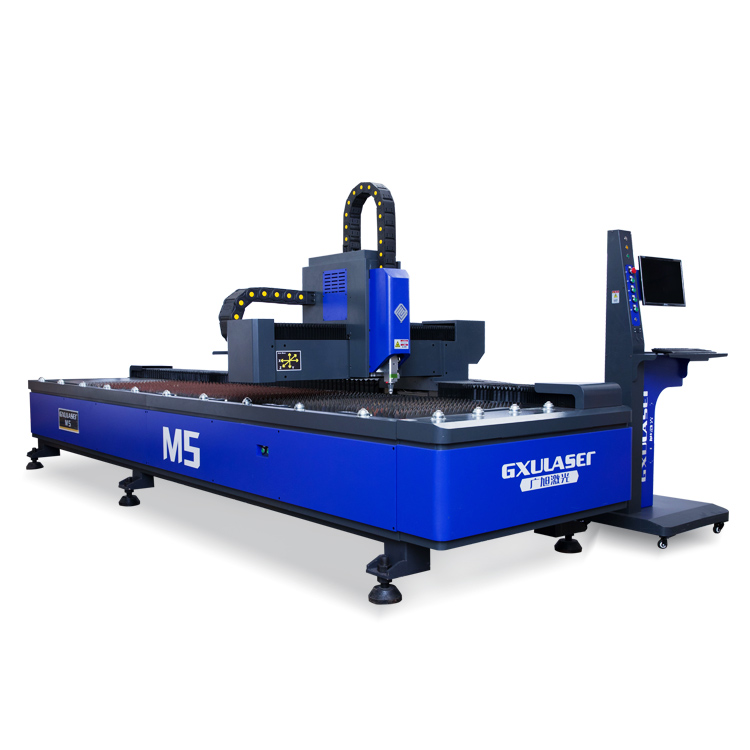

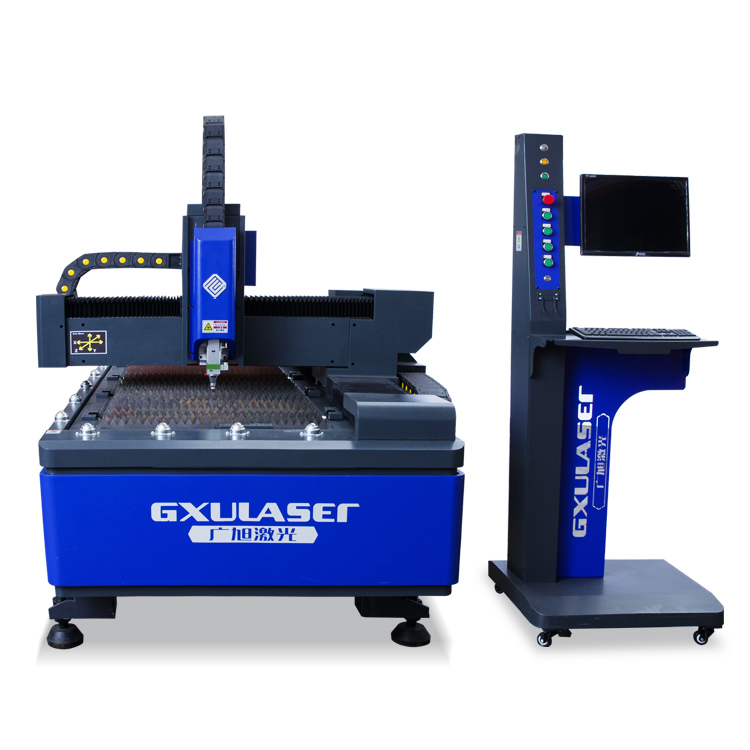

M5 Door Frames Positioning Cutting Fiber Laser Cutting Machine

Short Description:

GXU M5 series laser cutting machine is a cantilever laser cutting machine independently developed and produced by GXU LASER, which is mainly used for precise positioning and cutting of various door frames.

Send email to us

Product Detail

Product Tags

Overview

Application:LASER CUTTING
Condition:New
Cutting Area:4000mmx800mm
Graphic Format Supported:PLT, DXF
Graphic Format Supported:PLT, DXF
Control Software: CpyCut
Brand Name:GXULASER
Laser Head Brand:RAYTOOLS/WSX
Guiderail Brand:SMG/ LAPPING/ PMI
Weight (KG):3000 KG
Optical Lens Brand:WSX/ Raytools/ Precitec
Applicable Industries:Building Material Shops, Manufacturing Plant, Machine
Video outgoing-inspection:Provided
Core Components:Serve drive, Laserhead, fiber
Configuration:gantry type
Feature:Water-cooled
Laser Power:1000- 3000W
Min. Line:0.1mm
Cutting range:4000mmx800mm
Laser wavelength: 1070±10nm
After Warranty Service:Support online or go on-site

Applicable Material:Metal, Door Sheet
Laser Type:Fiber Laser
Cutting Speed:70m/min
CNC or Not:Yes
Cooling Mode:WATER COOLING
Place of Origin:Zhejiang, China
Laser Source Brand:BWT/RAYCUT/IPG
Servo Motor Brand:hechuan/ Delta/ FUJI
Control System Brand:FASCUT/ WEIHONG
Key Selling Points:High-accuracy
Warranty:3 years
Machinery Test Report:Provided
Warranty of core components:3 years
Mode of Operation:continuous wave
Products handled:metal
Product name:Laser Cutting Machine
Maximum load of workbench:500kg
Repeat position Accuracy:±0.05mm
Power supply:380V/50HZ
Certification:ce

Supply Ability

Supply Ability200 Set/Sets per Month

Packaging & delivery

Packaging Details:

Standard package: PP film wrapped Export wooden crate is optional;

Port:

Or other requirements as you want.Ningbo, Shanghai

Picture Example:

Lead time:

Quantity(sets)	1 - 1	>1
Lead time (days)	7	To be negotiated

Machine datails

Cooling mode	Water cooled	Repeat position accuracy	±0.05mm
The laser wavelength	1070±10nm	Drive motor	Servor Motor
Cutting range	4000mmx800mmmm	Cooling Mode	(Water cooling
Laser Power	1000- 3000W	Power supply	AC380/50Hz
Machine size	5100mm1300mm1650mm	Max Loading Capacity	500kg

Machine features

Compared with other ordinary laser cutting machines on the market, it has more functions such as easy loading, automatic positioning tooling, automatic roller top plate (to reduce scratches on the material surface), fast edge-finding and positioning of special-shaped plates, and multi-task processing; GXU M5 series Equipped with a high-precision three-dimensional cutting head, it can realize fast cutting without hitting the board for the uneven surface of various special-shaped door frames, and the processing range is wider. Equipped with an operating system, it can scan QR codes to import online drawings, greatly improving production efficiency.

Application

Widely used in kitchen utensils and bathrooms, advertising signs, lighting hardware, door frame hardware, electrical cabinets, auto parts, mechanical equipment, electrical equipment, aerospace, shipbuilding, elevator manufacturing, rail transit, textile machinery, precision parts, sheet metal processing, etc. Various metal products processing industries.

Product detail presentation

1.100% quality testing, that is, each machine has been tested strictly in mechanical assembling and performing before delivery;

2.100% sample testing, that is, each machine has been tested by the processed sample before delivery;

Certifications

We are certified by many parties, has multiple patent certificates.professionalism is guaranteed, the quality is worthy of your choice.
