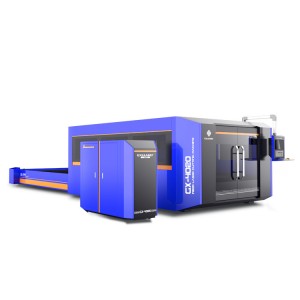

GX-4020AB All Cover Exchange Platform Fiber Laser Cutter

Short Description:

Widely used in kitchen utensils, advertising signs, lighting hardware, electrical cabinets, auto parts, machinery and equipment, electrical equipment, aerospace, shipbuilding, elevator manufacturing, rail transit, textile machinery, precision parts, sheet metal processing and other metals processing industry.

Product Detail

Product Tags


Usage:woodworking/metal engraving and cutting
Laser Source Brand:raycuslaser
Servo Motor Brand:FUJI
Control System Brand:Cypcut
Applicable Industries:Building Material Shops, Manufacturing Plant, Machinery
Video outgoing-inspection:Provided
Core Components:Laser Generator
Feature:Exchanged table + Full Cover
MAX Running Speed:120m/min
Power Supply:380V50Hz

Place of Origin:Zhejiang, China
Warranty:3 years
Laser Head Brand:Raytools
Guiderail Brand:PMI
Weight (KG):6500 KG
Key Selling Points:Long Service Life
Machinery Test Report:Provided
Marketing Type:Ordinary Product
Warranty of core components:3years
Product name:Full cover fiber laser cutting machine
Reducer:Japan Imported
X.Y axis location:±0.05mm
Laser wave length:1070nm
service support:Support online or go on-site

Supply Ability

Supply Ability20 Set/Sets per Month

Packaging & delivery

Packaging Details:

Standard wooden case, if you want load more, we can choose welder holder.


Ningbo,Shanghai or customized as your requirement

Picture Example:


Lead time:

Quantity(sets) 1 - 1 >1
Lead time (days) 7 To be negotiated

Product Specifications

Laser Power
Cutting Thickness
Above 10mm
The Laser Wavelength
Aimed and Positioning
Red light
Min.line Width
Power Supply
Repeat Position Accuracy
Cooling Mode
water cooling
Cutting Range
Product Size
Running Speed
Transmission Mode
Double Rack



Widely used in kitchen utensils, advertising signs, lighting hardware, electrical cabinets, auto parts, machinery and equipment, electrical equipment, aerospace, shipbuilding, elevator manufacturing, rail transit, textile machinery, precision parts, sheet metal processing and other metals processing industry.

Machine features

1.Adopting all covered frame structure to avoid radiation damage to operators. It is equipped with high-efficiency transmission mechanism such as imported high-precision rack and linear guide. It has good dynamic performance and fast servo response through advanced numerical control system.. It achieves higher cutting efficiency with medium-power fiber laser.
2.Adopting gantry structure, the equipment has high precision, good rigidity and stable operation. The machine tool is equipped with a universal roller device,which is labor-saving and convenient.
3.The machine base is made of high-quality 16mm steel plate and pipe welded frame structure. The machine tool is subjected to high temperature annealing treatment, secondary aging treatment and large-scale gantry milling machine precision machining. These design and processing methods ensure the machine has excellent shock resistance, high rigidity and stability.
4.With a blanking drawer, you only need to pull out the drawer when cleaning the blank.
5. With the automatic focusing cutting head, the optimal focal length can be automatically adjusted to ensure the best cutting effect of the whole board.
6.The capacitor non-contact automatic following system ensures that the cutting head and the cutting material have the same height, which avoids material scrapping caused by the height variation problem when the material is not flat.
7.Using fiber lasers, the electro-optical conversion efficiency is high, the power consumption during operation can be greatly saved, and the running cost saved; the trimming is less affected by heat, the slit is flat, and generally no secondary processing is required.


1.100% quality testing, that is, each machine has been tested strictly in mechanical assembling and performing before delivery;

2.100% sample testing, that is, each machine has been tested by the processed sample before delivery;




We are certified by many parties, has multiple patent certificates.professionalism is guaranteed, the quality is worthy of your choice.

Products Recommended


Related Products


Please feel free to send us an inquiry or message to know more about the machine.

We specialize in CNC routers and laser machines for 16 years.You haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.

Company Profile


Welcome to Visit Our Factory

Welcome to Visit Our Factory If you have plan to visit our factory, just contact us is ok, we willarrange everything well according to your schedule. no matter what trantport way that you want to choose, We will have pick you up, if you need us to arrange your hotel, please contact us.
>>> Click here, Your 24x7 helper ^ ^

Our Services


Support Door to Door

1. 24/7 online service .
2. 2 years warranty for machine.
3. After sale office in differ country
4. Life time maintenance
5. Free online technical support and install train.
6. We have a professional and experienced after-sales team.
7. We support door-to-door after-sales service.
8. In order to effectivelysolve customer problems and help customers use the machine better, we will conduct skill assessments on our after-sales team every year.




Q: How about after-sales service?
A: 1. We can provide free training in our company. 2. If u need, our engineers are available to service machinery overseas. But u need pay the tickets and hotel fees for our engineers.

Q: How about the warranty?

A: 2-year warranty for engraving machine,3-year warranty for laser machine.Life time maintenance.

Q: What should I do when I have some problems or questions?
A: Pls don’t hesitate to contact us, we will reply u ASAP.

Q: How about the quality?
A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for his mistake. And we will solve your problem.

Q: Which is the most suitable model machine for me?
A: Pls tell us your materials, thickness, size and business industries.We will select the machine model that is right for you.
