Overview
Application:LASER CUTTING
Condition:New
Cutting Area:1500mm*3000mm
Graphic Format Supported:PLT, DXF
Cooling Mode:WATER COOLING
Place of Origin:Zhejiang, China
Laser Source Brand:BWT/RAYCUT/IPG
Servo Motor Brand:FUJI
Control System Brand:Cypcut
Optical Lens Brand:II-VI
Applicable Industries:Building Material Shops, Printing Shops, Construction wo
Video outgoing-inspection:Provided
Core Components:Motor
Configuration:gantry type
Feature:Water-cooled
Laser wavelength:1070nm±10nm
Repeat position accuracy:±0.05mm
Aimed and positioning:Red light
Weight:4500kg.
Applicable Material:Metal, steel stainless
Laser Type:Fiber Laser
Cutting Speed:90m/m
Cutting Thickness:6-25mm
CNC or Not:Yes
Control Software:CPYCUT
Brand Name:GXULASER
Laser Head Brand:RAYTOOLS/WSX
Guiderail Brand:PMI
Weight (KG):5000 KG
Key Selling Points:Easy to Operate
Warranty:3 years
Machinery Test Report:Provided
Warranty of core components:3 years
Mode of Operation:continuous wave
Products handled:Sheet Metal and Tube
Laser power:1000-3000w
Min.Line Width:0.1mm
Cutting range:1500*3000mm
Cutting thickness:6-25mm
Power supply:380V/50Hz
Cooling mode:Water cooled
Supply Ability
Supply Ability20 Set/Sets per Month
Packaging & delivery
- Packaging Details:
Wooden case is customized , PP pack standard
- Port:
Ningbo,Shanghai or customized as your requirement
Picture Example:
Lead time:
| Quantity(sets) | 1 - 1 | >1 |
| Lead time (days) | 7 | To be negotiated |
Machine datails
|
Laser power
|
1000-6000W
|
Cutting thickness
|
6~25mm
|
|
The laser wavelength
|
1070nm±10nm
|
Aimed and positioning
|
Red light
|
|
Min.line width
|
0.1mm
|
Power supply
|
380V/50HZ
|
|
Repeat position accuracy
|
± 0.02mm
|
Cooling mode
|
Water cooled
|
|
Cutting range
|
1500 x3000mm
|
N.W.
|
≥5000Kg
|

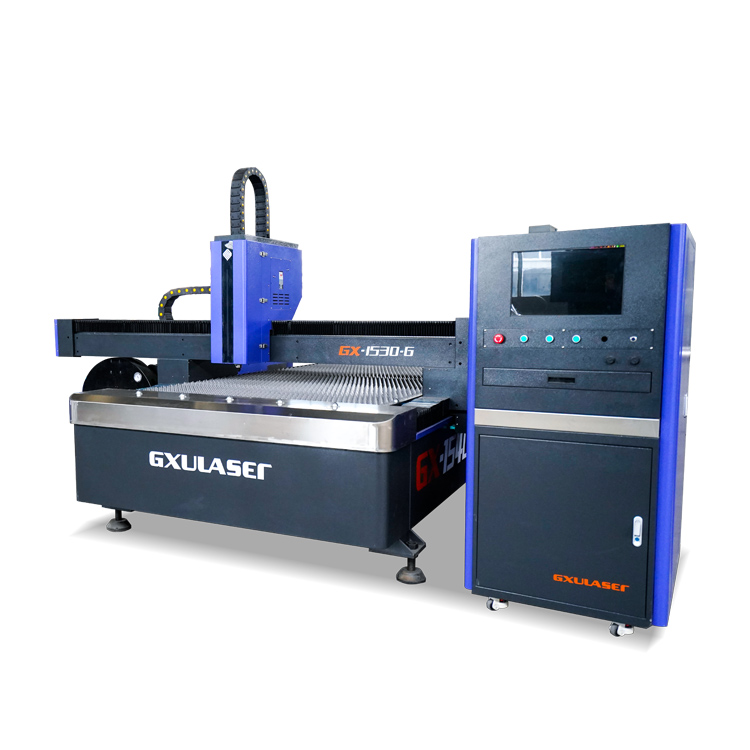

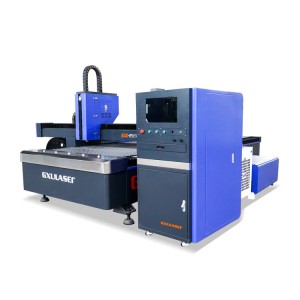

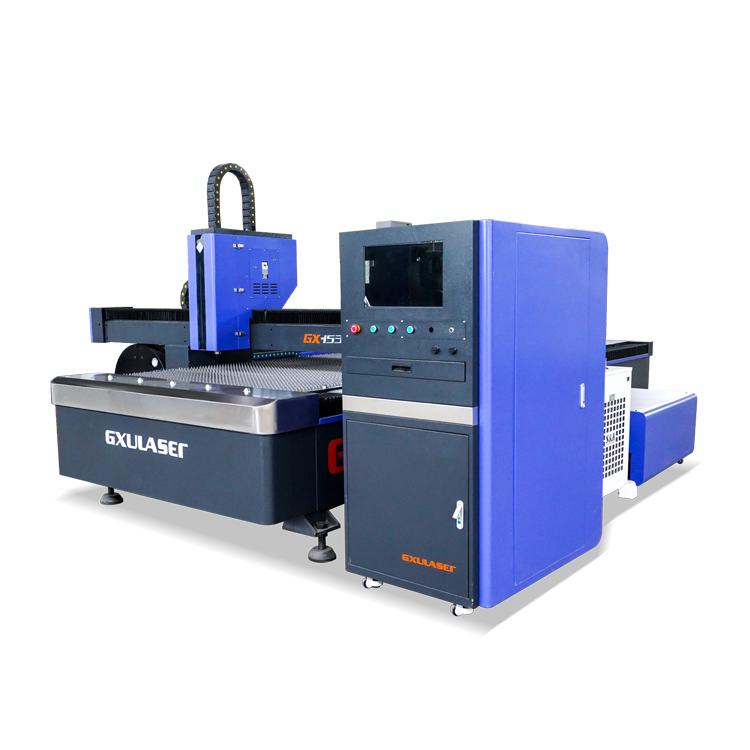

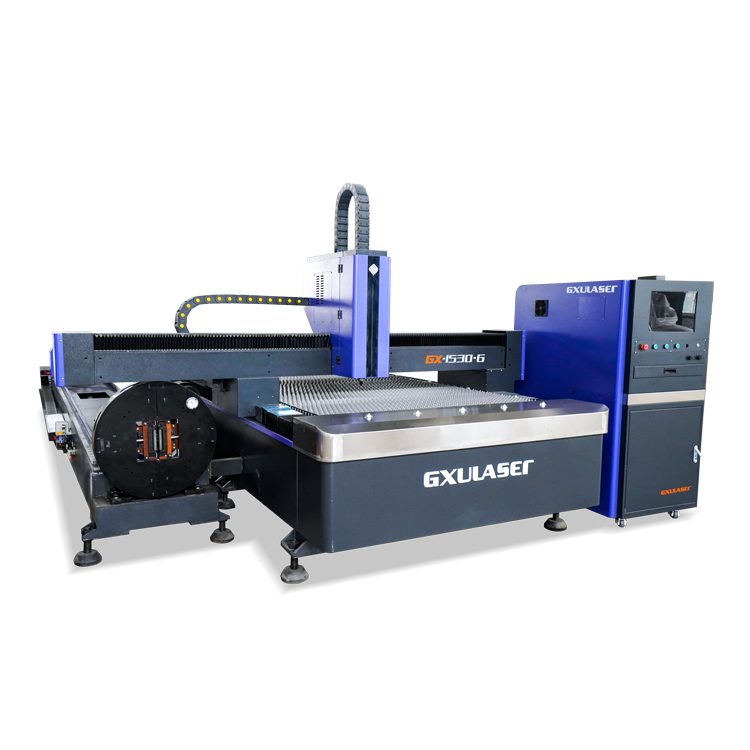

Plate and tube integrated fiber laser cutting machine
Machine features
1. Professional cutting square tube, round tube, rectangular tube, D-shaped tube and hexagonal tube and other types of pipes, automatic deviation correction function, find the center of the pipe material, intelligent, convenient and practical. Centralized operation, flexible processing and clamping are convenient and quick.
2. Sheet welding structure body, after quenching, tempering and stress relief treatment, the table plane and installation holes are processed by high-precision gantry milling at one time, which ensures the strength and precision life of the machine tool;
3. Adopt imported grinding-grade ball screw, imported high-precision linear guide, with high precision;
4. Using servo drive control, stronger torque, faster and more stable operation;
5. Follow-up smoking system, good smoking effect and energy saving
6. Using laser cutting head and laser lens, the focusing spot is smaller, the cutting line is finer, the work efficiency is higher, and the processing quality is better;
7. Professional laser cutting CNC control system, with intelligent typesetting function, easier operation and higher efficiency.
8. Fully automatic centering power chuck to ensure long pipes are clamped, flatness and feeding accuracy when tightened.
9. Simple integrated design covers a small area, one machine can cut both plates and pipes, and it is a high-efficiency force processing machine.
Application
Dry sheet metal processing, medical equipment, sports equipment industry, lighting industry, decoration and decoration industry, furniture industry, kitchenware and bathroom industry.
1.100% quality testing, that is, each machine has been tested strictly in mechanical assembling and performing before delivery;
2.100% sample testing, that is, each machine has been tested by the processed sample before delivery;
Certifications
We are certified by many parties, has multiple patent certificates.professionalism is guaranteed, the quality is worthy of your choice.
Products Recommended
Related Products
Please feel free to send us an inquiry or message to know more about the machine.
We specialize in CNC routers and laser machines for 16 years.You haven't found the machine you need, don't hesitate to contact us too. We will do best to give you the best suggestion.
Company Profile
Welcome to Visit Our Factory
Our Services
Support Door to Door
2. 2 years warranty for machine.
3. After sale office in differ country
4. Life time maintenance
5. Free online technical support and install train.
Exhibition
FAQ
Q: How about after-sales service?
A: 1. We can provide free training in our company. 2. If u need, our engineers are available to service machinery overseas. But u need pay the tickets and hotel fees for our engineers.
Q: How about the warranty?
Q: What should I do when I have some problems or questions?
A: Pls don’t hesitate to contact us, we will reply u ASAP.
Q: How about the quality?
A: Before we pack each machine, we will test it first. If machine has problem in your place, our worker will take responsible for his mistake. And we will solve your problem.
Q: Which is the most suitable model machine for me?
A: Pls tell us your materials, thickness, size and business industries.We will select the machine model that is right for you.
