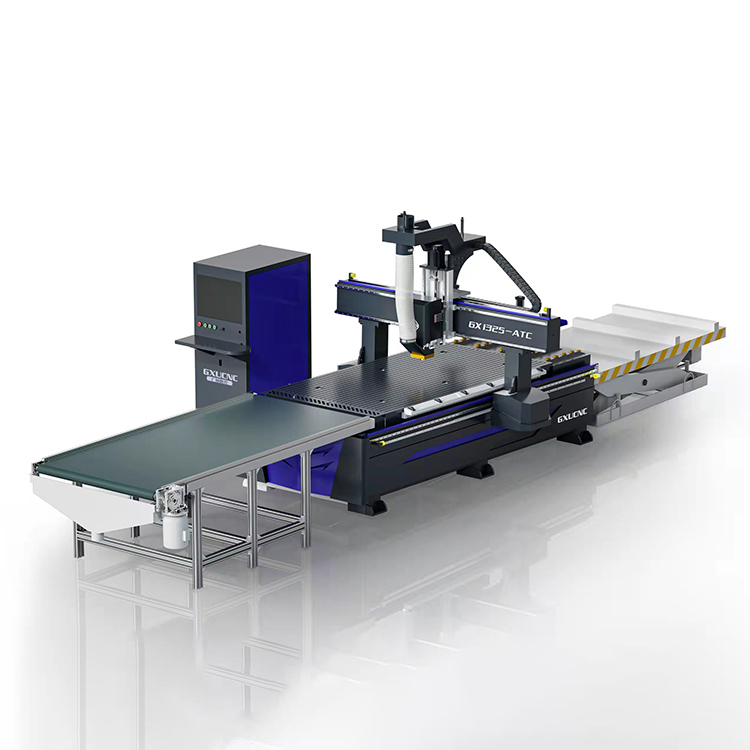

1325 ATC Woodworking Engraving Machine CNC Wood Router

Short Description:

Lubrication system:Supply lubricating oil to increase the service life of linear slides and ball screws. Unique oil circuit design ensures the supply of lubricating oil at each oil filling point.

Product Detail

Product Tags


Range of Spindle Speed(r.p.m):1 - 24000 rpm
Positioning Accuracy (mm):0.01 mm
Number of Axes:3
No. of Spindles:Single
Working Table Size(mm):1300×2500
Machine Type:CNC Router
Travel (X Axis)(mm):1300 mm
Travel (Y Axis)(mm):2500 mm
Repeatability (X/Y/Z) (mm):0.01 mm
Spindle Motor Power(kW):9
CNC or Not:CNC
Place of Origin:Zhejiang, China
Brand Name:GXUCNC
Power (kW):11
Weight (KG):4000
Control System Brand:NC Studio
Machinery Test Report:Provided

Control System Brand:NC Studio
Warranty:2 years
Key Selling Points:High Rigidity
Applicable Industries:Building Material Shops, Manufacturing Plant, Home Use, Construction works , Other, Furniture Factory, Woodworking Industry
Video outgoing-inspection:Provided
Warranty of core components:2 years
Core Components:Motor
Running speed:60m/min
Tool change mode:Automatic tool change
Countertops:Vacuum Adsorption Countertops
Cooling method:Water cooling
Spindle speed:24000r/m
Machining accuracy:±0.03mm
Repeat positioning accuracy:±0.01mm
Oil supply method:Automatic oil supply
Control method:Taiwan Baoyuan Industrial Control System
Working voltag:AC380/50HZ

Woodworking CNC Router

Table size


X-axis travel


Y-axis travel


Z-axis travel


Spindle power


Running speed


Tool change mode

automatic tool change

Work table

vacuum suction table

Cooling method

water cooling

Spindle speed


Machining accuracy


Repeat positioning accuracy


Oil supply method

automatic oil supply

Control method

Taiwan Baoyuan Industrial Control System

Working voltage


Machine weight


Machine Advantages

Lubrication system:Supply lubricating oil to increase the service life of linear slides and ball screws. Unique oil circuit design ensures the supply of lubricating oil at each oil filling point.


Automatic tool calibration:Precisely detect the position of the tool calibration point, and automatically input the tool length data, which can quickly solve the correction and automatic calibration of the tool length for complex processing products, ensuring work efficiency.


Industrial electric control box:The use of fan cooling cycle can effectively control the heat energy generated by the electric control box and prolong the service life of electrical parts. Adopt green environmental protection cable, anti-interference and long service life.


Precision linear slides:The precision slide block is equipped with manual pressure centralized lubrication function, which can increase the service life of the linear slide rail.


Bed frame:The whole bed adopts industrial seamless welding technology, and the bed is all quenched and stress-relieved to ensure that the long-term use accuracy of the equipment will not be lost. All the installation holes of the equipment are processed by a five-axis machining center at one time, which ensures the final assembly accuracy of the equipment.


System (NK280):Support a variety of codes and carving processing formats, based on WINDOWS operating system, standard user interface, easy to operate. Support log function to help users view detailed processing information and system diagnosis


High-precision rack and rail:Large bearing capacity, high transmission precision and low noise. The overall operation is stable and the actual effect is guaranteed.


Product Details


Support Door to Door

1. 24/7 online service .

2. 2 years warranty for machine.

3. After sale office in differ country

4. Life time maintenance

5. Free online technical support and install train.

6. We have a professional and experienced after-sales team.

7. We support door-to-door after-sales service.

8. In order to effectivelysolve customer problems and help customers use the machine better, we will conduct skill assessments on our after-sales team every year.
