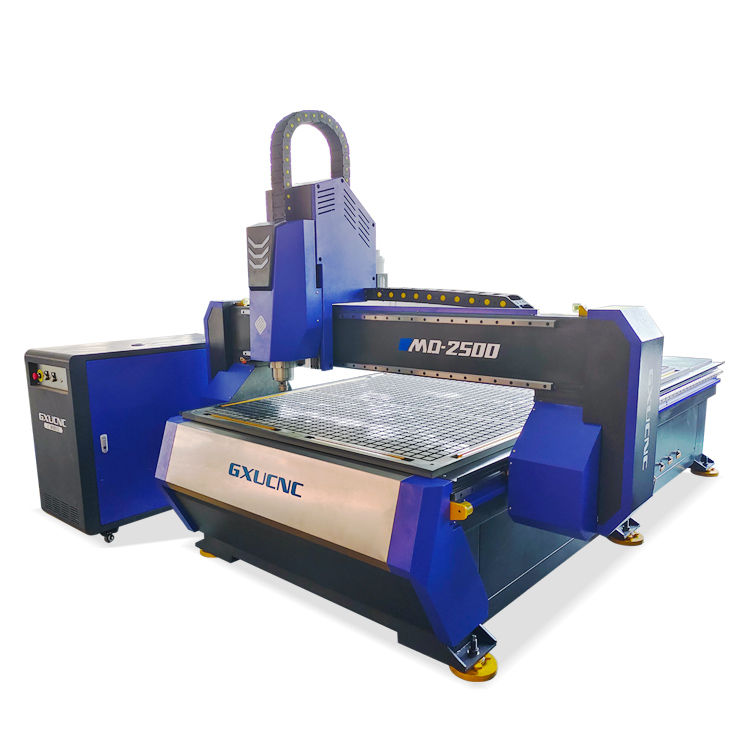

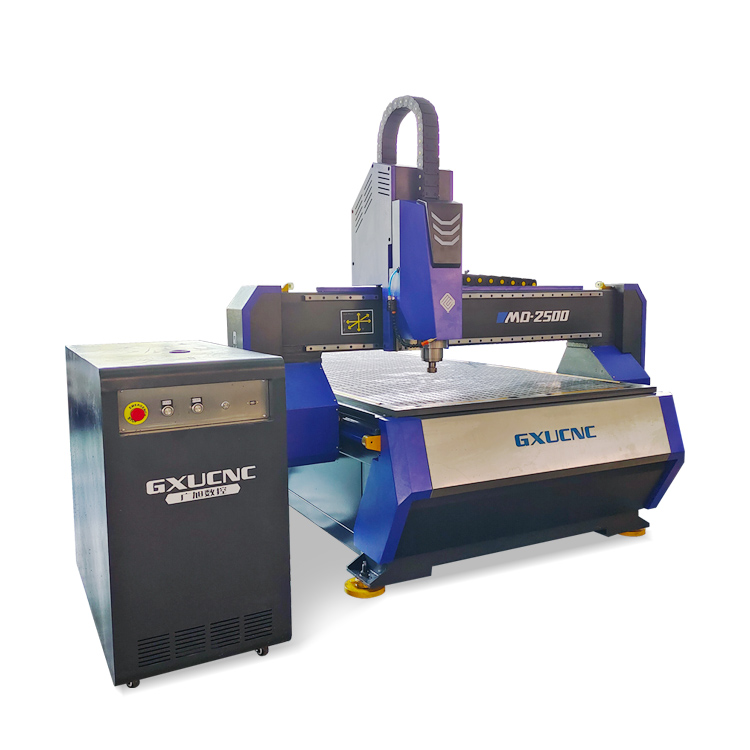

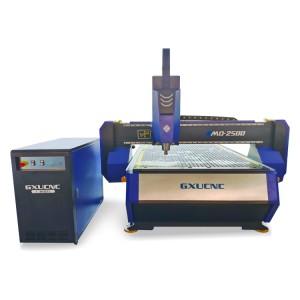

MD 2500 Standard form Muti- function CNC Engraving Machine

Short Description:

X, Y-axis with imported high-precision rack, Z-axis with imported high-precision grinding grade ball screw.

Product Detail

Product Tags

Overview

Condition:New
Range of Spindle Speed(r.p.m):1 - 24000 rpm
Positioning Accuracy (mm):0.05 mm
Number of Axes:3
No. of Spindles:Single
Working Table Size(mm):1300×2500
Machine Type:CNC Router
Travel (X Axis)(mm):1300 mm
Travel (Y Axis)(mm):2500 mm
Repeatability (X/Y/Z) (mm):0.02 mm
Spindle Motor Power(kW):3
CNC or Not:CNC
Place of Origin:Zhejiang, China
Brand Name:GXUCNC
Voltage:AC220/50Hz
Dimension(L*W*H):3.05m*2.1m*1.85m
Power (kW):4.5
Weight (KG):800

Power (kW):2.1
Weight (KG):350
Warranty:2 years
Key Selling Points:Multifunctional
Applicable Industries:Home Use, Retail, Energy & Mining
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:2 years
Product name:jade carving machines
X/Y/Z stroke:400*300*150mm
Processing size (relief):270*300*150mm
Processing size (round carving):100*L200mm
Processing speed:0-4000mm/min
screw:Imported ball screw
Appearance size:700*850*1700mm
Clampable tool shank diameter:2.3mm/3mm/4mm/6mm
Total power:2.1KW
After Warranty Service:Online support

Video Description

Machine datails

Working Area	1300x2500mm	Repeat position accuracy	±0.01mm
Total Spindle Power	6.0Kw	Drive motor	Servor Motor
Running Speed	40m/Min	Power supply	AC380/50Hz
Processing Accuracy	±0.01mm	N.W.	1500Kg

Machine features

1. MD2500 adopt T-style body structure and crossbeam transmission design, main body with Industrial welding technology, quench dealing method and then with high precision milling maching to build. All the accessories are all made one time by 5 axis machining center to ensure machine's rigidity and accuracy.

2. X, Y-axis with imported high-precision rack, Z-axis with imported high-precision grinding grade ball screw.

3. Spindle with high precision, high speed, constant torque, low beating, strong stability, long lifetime characteristics.

4.Supporting G code and PLT code format generated by Type 3, MASTERCAM, CASMATE, Artcam, AUTOCAD, UG, CorelDraw and other CAD / CAM software.

Product Details

Support Door to Door

1. 24/7 online service .

2. 2 years warranty for machine.

3. After sale office in differ country

4. Life time maintenance

5. Free online technical support and install train.

6. We have a professional and experienced after-sales team.

7. We support door-to-door after-sales service.

8. In order to effectivelysolve customer problems and help customers use the machine better, we will conduct skill assessments on our after-sales team every year.
