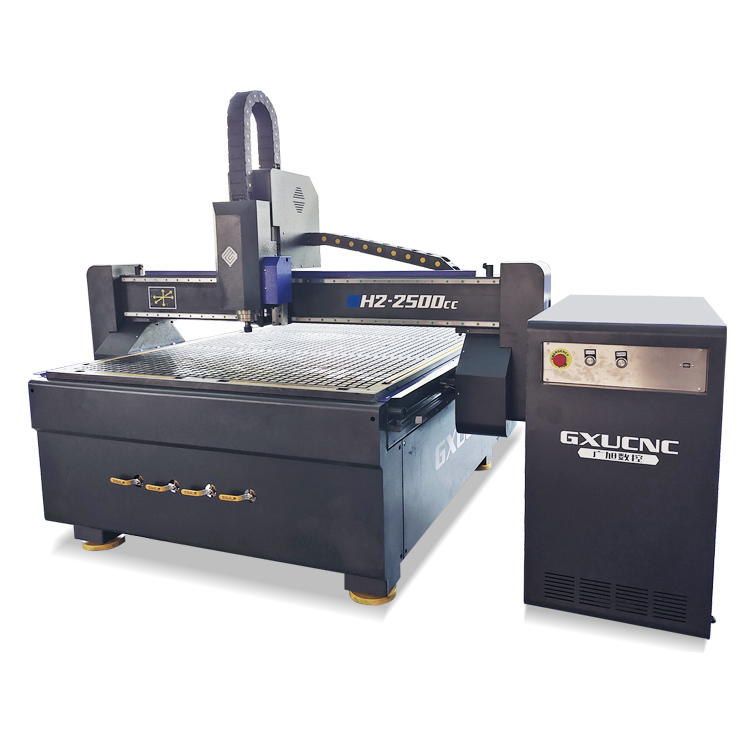

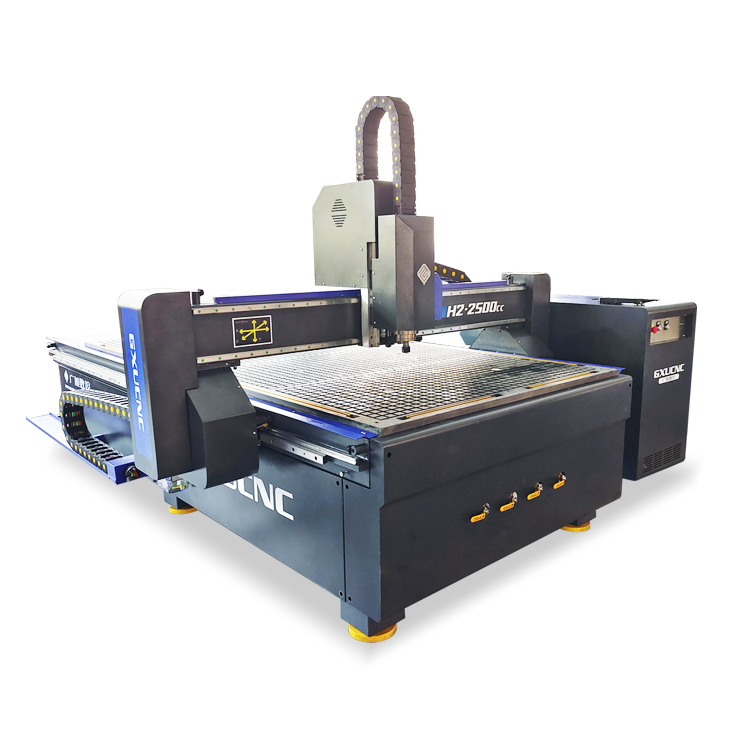

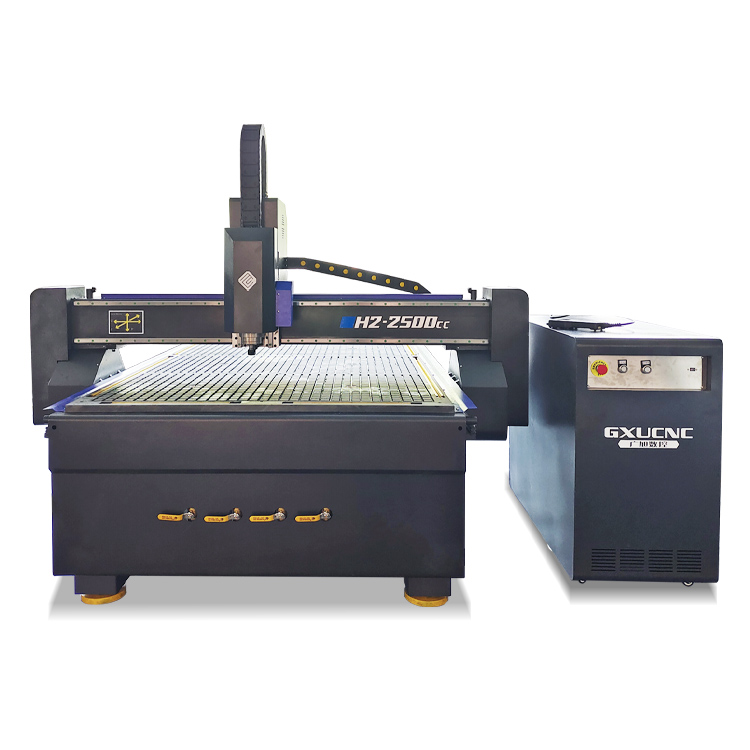

H2 2500cc Automatic Profile Search- edge Cutting Machine CNC Router

Short Description:

H2 2500CC is an automatic search edge different shape engraving machine R&D and produced by GXUCNC. Industrial camera imported from Germany positioning, self-developed search-edge control system, realize the machine vision automatic positioning and cutting. Not only has the original laser machine features, but also realize the function of engraving machine.

Send email to us

Product Detail

Product Tags

Overview

Condition:New
Range of Spindle Speed(r.p.m):1 - 24000 rpm
Positioning Accuracy (mm):0.01 mm
Number of Axes:3
No. of Spindles:Single
Working Table Size(mm):1300×2500
Machine Type:CNC Router
Travel (X Axis)(mm):1300 mm
Travel (Y Axis)(mm):2500 mm
Repeatability (X/Y/Z) (mm):0.02 mm
Spindle Motor Power(kW):3
CNC or Not:CNC
Place of Origin:Zhejiang, China
Brand Name:GXUCNC
Voltage:AC220/50Hz
Dimension(L*W*H):3.05m*2.1m*1.85m
Power (kW):8
Weight (KG):800

Control System Brand:DSP, RichAuto
Warranty:2 years
Key Selling Points:Multifunctional
Applicable Industries:Building Material Shops, Home Use, Other, Advertising Company, Advertisement sign, advertising industry
Video outgoing-inspection:Provided
Warranty of core components:2 years
Core Components:Motor
Product name:Cutting Machine
Working area:1300*2500mm
Total Spindle Power:3Kw
Running speed:35m/Min
Processing Accuracy:±0.2mm
Repeat position accuracy:0.015mm
Drive motor:Hybrid servo motor
Working Voltage:AC380V/50HZ
N.W.:1000Kg
After Warranty Service:Support online or go on-site

Machine datails

Working Area	1300x2500mm	Repeat position accuracy	±0.015mm
Total Spindle Power	3Kw	Drive motor	Hybrid Servor Motor
Running Speed	35m/Min	Power supply	AC380/50Hz
Processing Accuracy	±0.2mm	N.W.	1000Kg

Product Details

Support Door to Door

1. 24/7 online service .

2. 2 years warranty for machine.

3. After sale office in differ country

4. Life time maintenance

5. Free online technical support and install train.

6. We have a professional and experienced after-sales team.

7. We support door-to-door after-sales service.

8. In order to effectivelysolve customer problems and help customers use the machine better, we will conduct skill assessments on our after-sales team every year.
