Overview
Condition:New
Range of Spindle Speed(r.p.m):1 - 30000 rpm
Positioning Accuracy (mm):0.01 mm
Number of Axes:3
No. of Spindles:Single
Working Table Size(mm):1600*3000
Machine Type:CNC Router
Travel (X Axis)(mm):1600 mm
Travel (Y Axis)(mm):3000 mm
Repeatability (X/Y/Z) (mm):0.01 mm
Spindle Motor Power(kW):7.5kw
CNC or Not:CNC
Place of Origin:Zhejiang, China
Brand Name:GXUCNC
Voltage:380V/50HZ
Dimension(L*W*H):4.2m*2.6m*2m
Power (kW):10
Control system:NK300
Weight (KG):3500
Control System Brand:NC Studio
Warranty:2 years
Key Selling Points:High Rigidity
Applicable Industries:Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Advertising Company
Machinery Test Report:Provided
Video outgoing-inspection:Provided
Warranty of core components:2 years
Core Components:Motor
Name:Engraving machine
Working area:1600mmx3000mm
Spindle speed:0-30000rpm/min
Processing speed:10m/min
Empty travel speed:18m/min
Processing area:1600mm*3000mm
Transmission mode:TBI
Machine dimensions:2700mm*4100mm*2100mm
Machine datails
|
Working Area |
1600x3000mm |
Repeat position accuracy |
±0.01mm |
|
Total Spindle Power |
7.5Kw |
Drive motor |
Servor Motor |
|
Processing speed |
10m/min |
Guide rail |
Taiwan high precision guide rail |
|
Processing Accuracy |
±0.01mm |
Transmission mode |
TBI high precision lead screw |
|
Spindle speed |
0-30000rpm/min |
Power supply |
AC380/50Hz |
|
Empty travel speed |
18m/min |
Control System |
WEIHONG NK300 |
|
Vacuum negative pressure pump |
2.2KW |
N.W. |
3500Kg |

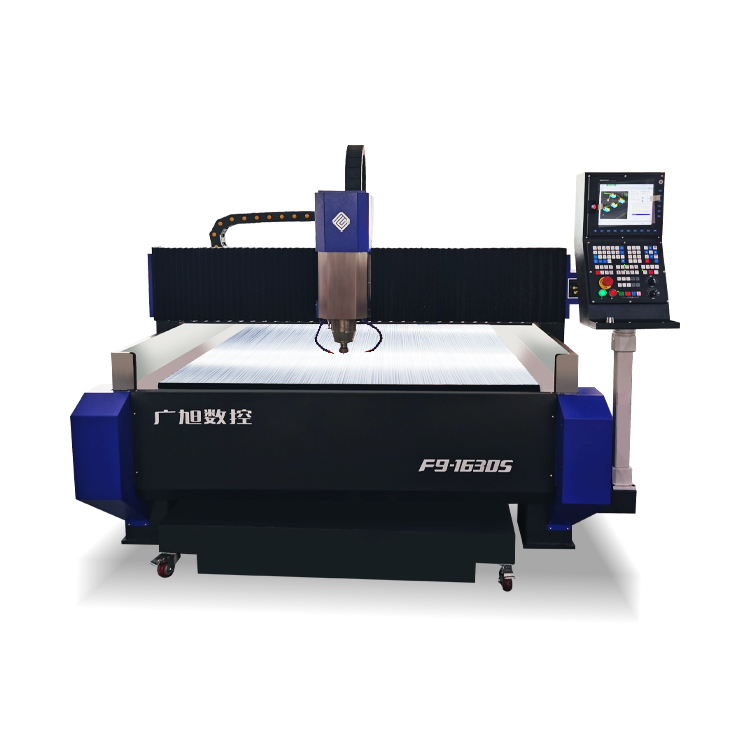

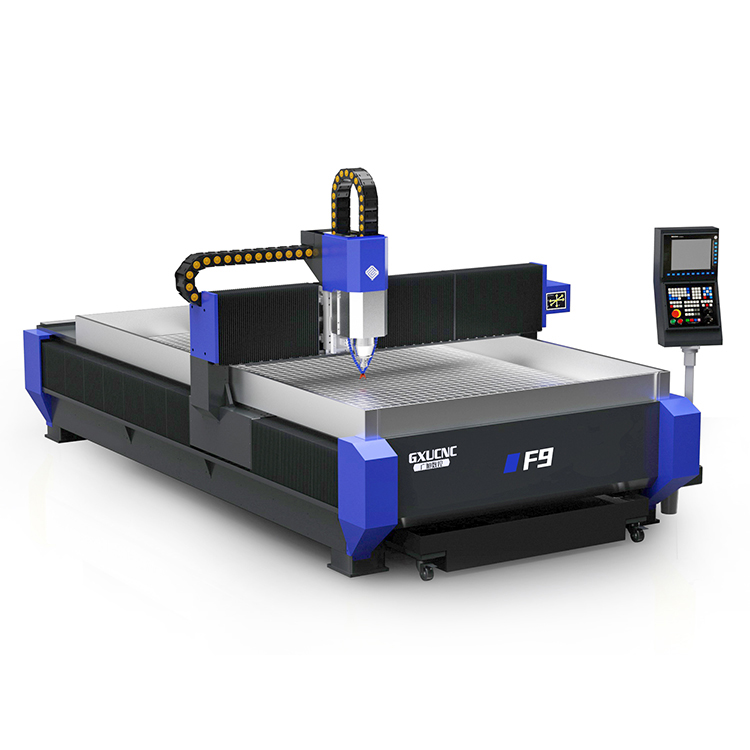

Double Lead Screw Engraving machine
F9 is a new double screw metal processing developed and produced Engraving machine by gxuncc (Guangxu CNC). It mainly uses copper plate relief carving, aluminum door and window carving and other materials. The system supports eng, NC and other formats. The cutting is accurate, convenient and efficient.
Machine advantage
1. This is a high-precision processing equipment, more suitable for a workpiece with more than one tool and high-precision cutting and carving. There is no shadow on the bottom and no vibration on the side of the workpiece.
2. Weihong NK300 industrial control system is a special industrial control system for relief processing, which has faster operation speed;
3. The machine weight is 3.5 tons, and the stress is removed by industrial welding tempering to ensure that the bed will not deform for a long time, and the machining precision is more durable and the service life is longer;
4. Imported servo motor, better precision and more stable;aluminum vacuum adsorption table with T-type fixture tooling, to ensure thefirmness of the workpiece to the greatest extent;
5.The 7.5kW high-power tool changing spindle is equipped with 4 tool magazine,which has higher automation and faster efficiency;
Product Details
There is a water circulation system, which can save water resources.
The aluminum table is not easy to deform and has high precision.
Support Door to Door
1. 24/7 online service .
2. 2 years warranty for machine.
3. After sale office in differ country
4. Life time maintenance
5. Free online technical support and install train.
6. We have a professional and experienced after-sales team.
7. We support door-to-door after-sales service.
8. In order to effectivelysolve customer problems and help customers use the machine better, we will conduct skill assessments on our after-sales team every year.
